# Interface Overview

## :pencil2: Edit <a href="#map" id="map"></a>

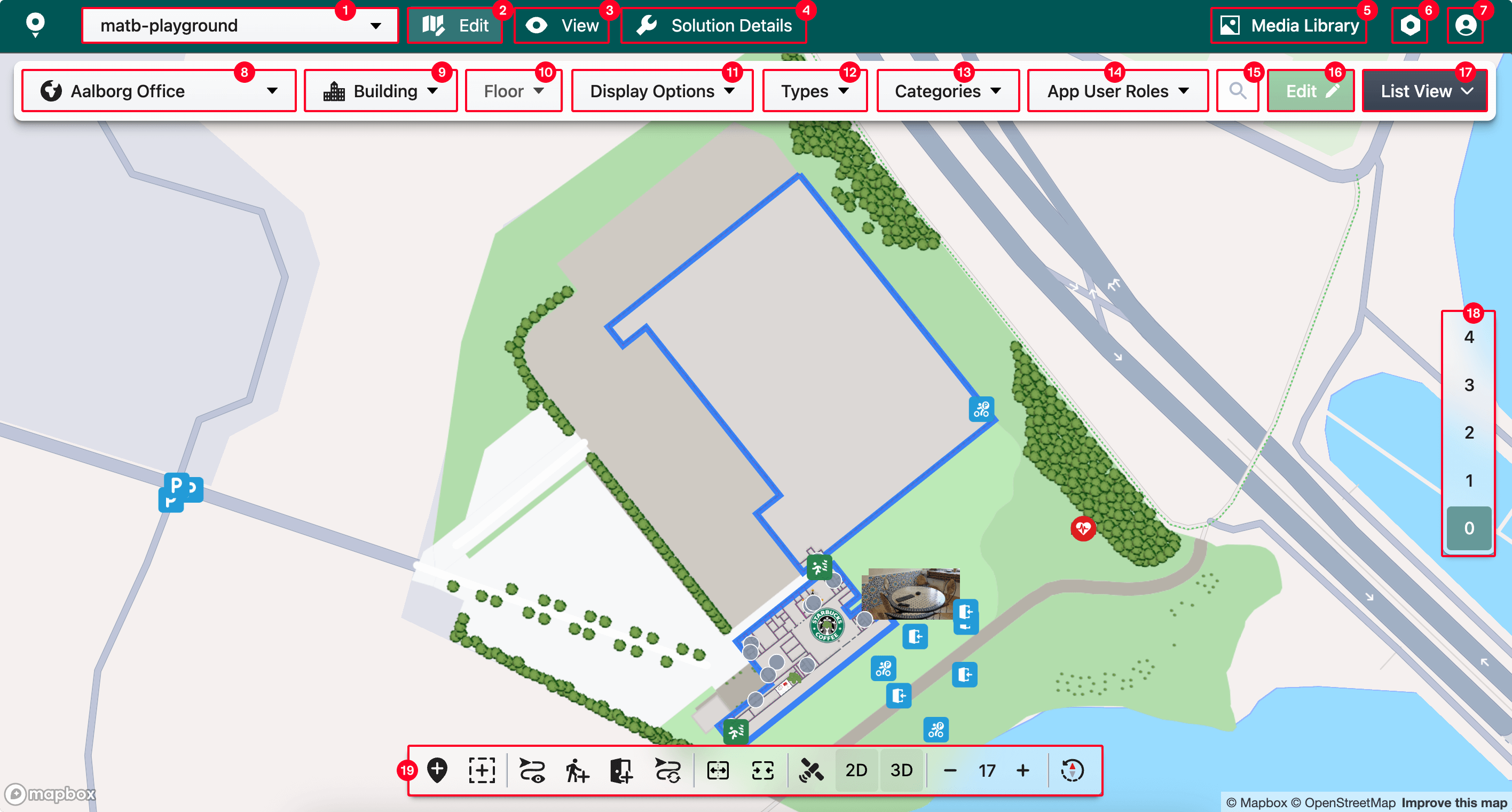

The **Edit** section is the main navigation of the MapsIndoors CMS and includes the Filter bar at the top, a Toolbar at the bottom, a Floor selector on the right, and your Map in the center.

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-60c337155a9f120a9c5a76964ace403258ab95a7%2Fcms-overview.png?alt=media" alt=""><figcaption></figcaption></figure>

1. Use the "Solution Switcher" to select your active Solution.
2. Enters the "Edit" view (shown on the image). This is the page you see when logging into the CMS.
3. Enters the "[View](#view)" view. Here you can preview how your map will look in production.
4. Enters the "Solution Details" menu containing the submenus mentioned earlier.
5. Opens your solution's "Media Library"
6. Enter the "Settings" menu page containing subpages.
7. Opens a drop-down menu containing options such as "Docs," "Log Out," and a link to enabling two-factor authentication.
8. Select the active Venue. The filter bar can then narrow down the data you see on the Map and Lists for this Venue.
9. Select one or more Buildings.
10. Select one or more Floors. This is active when a single Building is selected.
11. Filters on whether Rooms, POIs, and Areas should be shown on the Map and in the List.
12. A filter to narrow down Locations to display specific Location Types.
13. A filter to narrow down Locations to display specific Categories.
14. A filter to narrow down Locations to display with specific App User Roles applied.
15. Click to search for Locations using a Location’s name, Location ID, Alias, or External ID.
16. Selecting one or more Locations in the List view activates the bulk edit button. This allows you to bulk update Location Attributes, such as Location Type, Searchability, Categories, Aliases, and more.
17. Expands a list containing all your Locations. Filters are applied to Location data shown on the Map and the List view.
18. A Floor selector to set the Floor for the Map.

### 19. The toolbar

From left to right, the functionalities in the Toolbar are as follows (you can also hover over the icons in the CMS to see their names):

* **Add POI** - Creates a Point of Interest by clicking on the Map. Afterwards, it opens an editor where Location details can be adjusted.
* **Add Area** - Creates an Area by clicking on the Map to create corners of a polygon. Afterwards, it opens an editor where Area details can be adjusted.
* **Show Network** - A toggle button to show or hide the Route Network used by the Wayfinding feature.
* **Add Barrier Route Element** - Creates a Route Element on your map. The Barrier Route Element can apply e.g. restrictions, a delay, or define a one-way direction to specific parts of the Network. For example, if you do not want your directions to guide your visitors down a specific hallway, but there isn't a Door present, this Route Element can be used.
* **Reload Route Network** - Reloads the Route Network. Route Element changes' effect on the Network becomes visible after reloading the Network.
* **Zoom Level** - Adjust the Zoom Level. Values range from 15 (zoom out) to 999 (also known as "max zoom").

### Doors & Barriers​ <a href="#doors--barriers" id="doors--barriers"></a>

Doors and Barriers are Route Elements that allow you to manipulate certain portions of the Route Network. They appear if you click the **Show Network** button mentioned above.

**Doors** are a Route Element that indicates the presence of a door - or other entryway - in a building.

* **Type** - Lets you define what type of Door this is. Each type has different defaults.
  * **Door** - A Door between two Rooms inside the same Building.
  * **ElevatorDoor** - A Door for an elevator comes with a built-in Delay.
  * **ExternalDoor** - A type of Door that links to the outside Route Network. These only connects to one Room.
  * **InterBuildingDoor** - A Door that connects two Rooms in two different Buildings.
  * **Opening** - An entryway between two Rooms inside the same Building, but with no physical door.
  * **Hatchway** - A specific kind of Door used for smaller rooms in some specific situations.
* **Restrictions** - Set optional limits on who can use this Door.
  * **Open for all** - Open for all Users.
  * **Open for specific App User Roles** - Define certain App User Roles that can use this Door.
  * **Closed for all** - No Users can use this door.
* **Delay (seconds)** - Set a Delay in seconds for routes that pass through this door. Used in estimated arrival time calculations.
* **Radius (meters)** - Set the Radius in meters for this Door, to ensure it touches the Route Network.
* **Floor Index** - Use this to move a Door from one Floor to another.
* **One-way direction (bearing)** - The *exit angle* of a one-way Door, in degrees, like a compass bearing. In the illustration below, the entered value would be 45, as the user would exit at a 45-degree bearing.

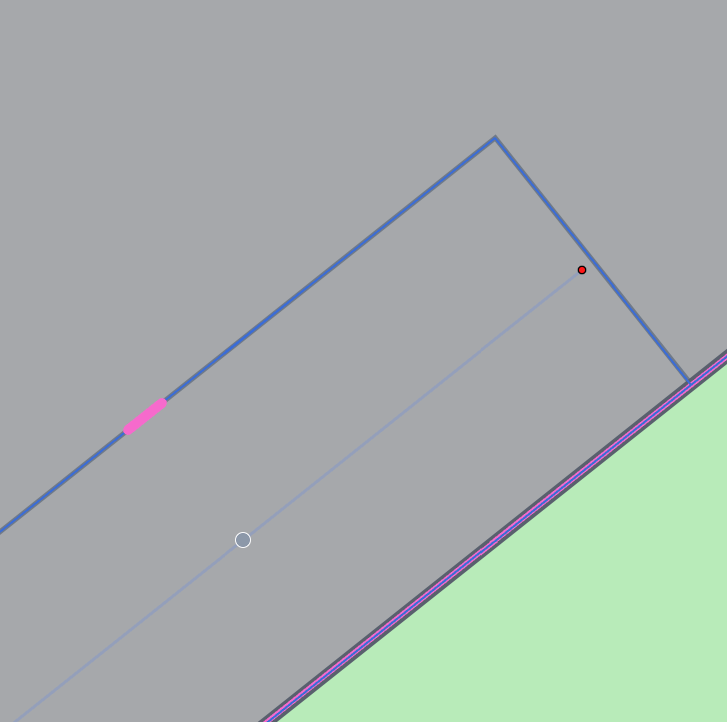

By default doors are snapping, meaning they are following the lines of current solution's geometry:

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-f500651106e09e2b8f53583e790c51e712fafb03%2Fsnapping-doors.png?alt=media" alt=""><figcaption></figcaption></figure>

While holding Shift keyboard button and moving mouse around, doors will:

* snap to the middle point of the closest wall of the closest polygon to the mouse pointer,
* snap to the corners of the polygon that mouse is the closest to.

Different doors creation modes:

* **Single** - Creates single door on the map. Can be accessed by Add Door Route Element button in the toolbar:

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-84e6589fa4ef1862b78aa4971f3a0732ac248f52%2Fsingle-door-icon.png?alt=media" alt=""><figcaption></figcaption></figure>

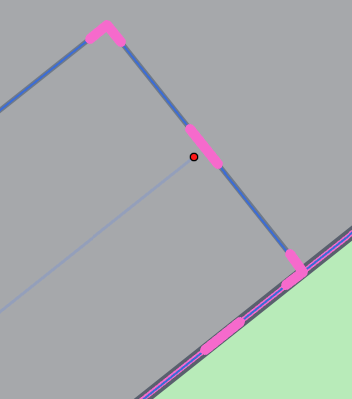

* **Multiple with fixed width** - Creates multiple doors on the map with fixed width. Can be accessed by keyboard shortcut: Ctrl+Shift+D for **Windows**, Shift+Control+D for **MacOS**.

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-2aafa7bfca8bb48d5f7d043097fde5f26ba37401%2Fmultiple-fixed-width-doors-example.png?alt=media" alt=""><figcaption></figcaption></figure>

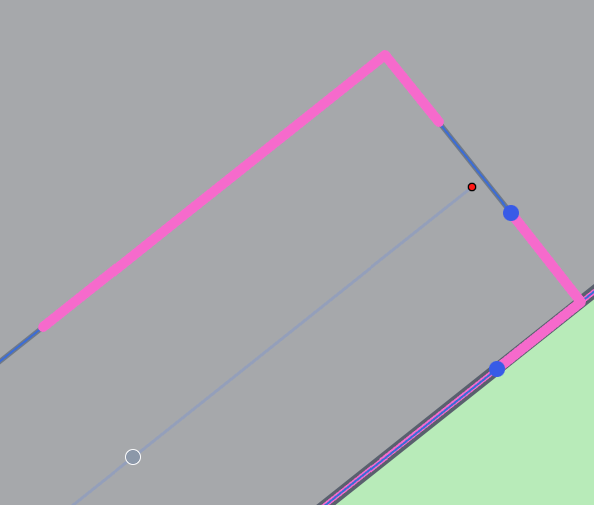

* **Multiple with custom width** - Creates multiple doors on the map with custom width. Can be accessed by keyboard shortcut: Ctrl+Shift+F for **Windows**, Shift+Control+F for **MacOS**.

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-ac9b6f7c0fd6615236fc4657f84d2165d947f66e%2Fmultiple-custom-width-doors-example.png?alt=media" alt=""><figcaption></figcaption></figure>

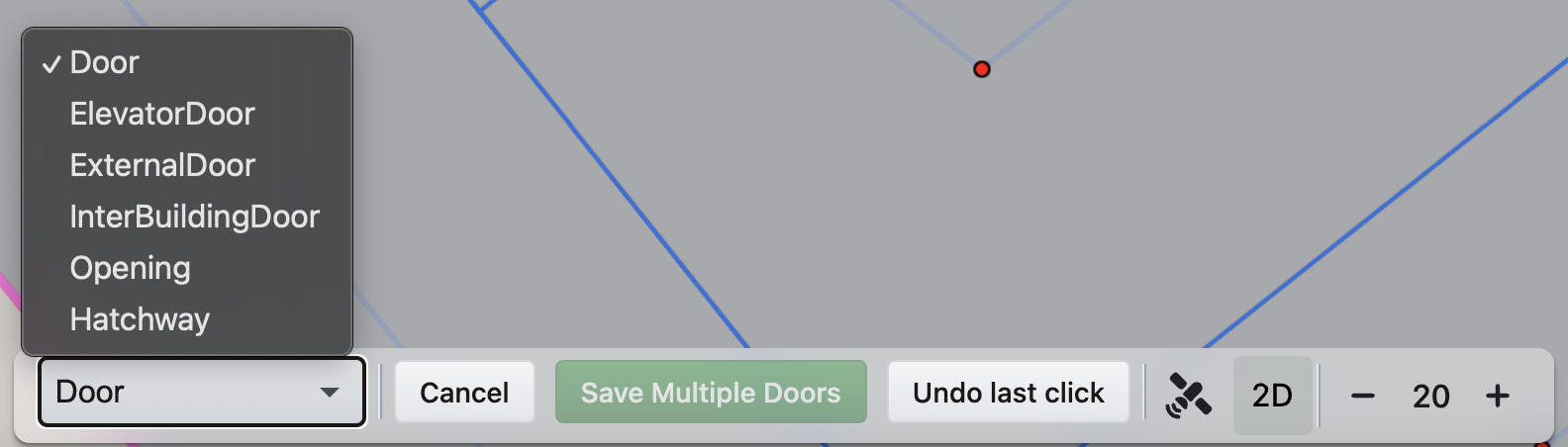

When accessing Multiple doors creation mode, there is an option to choose door type for all the doors that will be created. You can also undo latest door creation.

**NOTE:** This is the only property that you can change while creating doors. The rest of the properties have to be edited for each door individually.

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-8245ffbbbcd1cedcfb484ab7ef958bca9f0307b9%2Fmultiple-doors-toolbar.png?alt=media" alt=""><figcaption></figcaption></figure>

**Barriers** are similar to Doors in that they are used to modify the Route Network. Many of the settings and restrictions you can set are the same between the two kinds.

* **Restrictions** - Set optional limits on who can bypass this Barrier.
  * **Open for all** - Open for all Users.
  * **Open for specific App User Roles** - Define certain App User Roles that can bypass this Barrier.
  * **Closed for all** - No users can bypass this Barrier.
* **Delay (seconds)** - Set a Delay in seconds for routes that pass through this Barrier.
* **Radius (meters)** - Set the Radius in meters for this Barrier to ensure it touches the Route Network.
* **Floor Index** - Use this to move a Barrier to another Floor.
* **One-way direction (bearing)** - The *exit angle* of a one-way Barrier, in degrees, like a compass bearing. In the illustration above, the entered value would be 45, as the user would exit at a 45-degree bearing.

## :eye: View

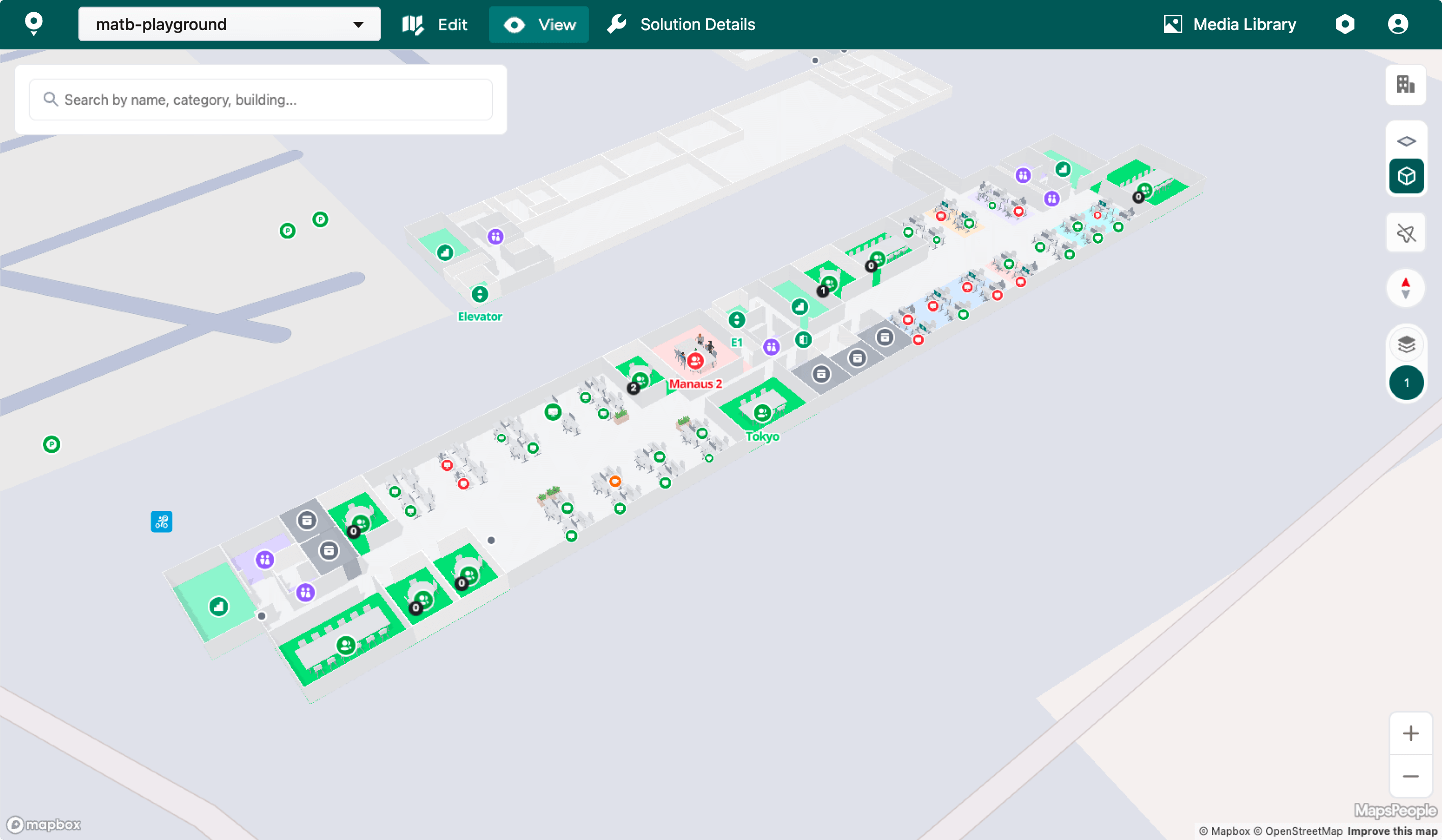

In the View tab, you can see how your map will act in a real-world production environment, including routing and styling. Use this tab to do quality assurance for your map.

{% hint style="info" %}
If you're working in "Edit" mode and also have the "View" tab open, be sure to refresh the "View" tab to see your changes. They won't appear there automatically.
{% endhint %}

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-e83839c46dd90a6a0908c6740e0c08df6a67f03c%2Fcms-view.png?alt=media" alt=""><figcaption></figcaption></figure>

Your configurations in "[App Configuration](https://docs.mapsindoors.com/web-app#configuration)" will also be represented here.

## :wrench: Solution Details <a href="#solution-details" id="solution-details"></a>

Under Solution Details, you can find several subpages, which are described below.

### Types

This page organises the "Types" you can add to your Locations.

1. Create a new Type.
2. Select multiple Types for easy deletion.
3. "Edit Type" - Gives you the option to change the name of the Type, edit if given type is selectable, not selectable or if value should be inherited from Solution Settings, modify the App User Role restrictions, Sync to other Solutions or Add Custom Properties.
4. "Edit Display Rules" - The ability to modify the Display Rules for a given Type.
5. The Icon assigned to the Type.
6. The Display Name of the Type.
7. The Administrative ID of the Type.
8. The number of Locations with the given Type applied.
9. Whether the Type's "General Visibility" is set to Visible or Not Visible.

### Categories <a href="#categories" id="categories"></a>

Categories are similar to Types, but whereas Locations can only be of one Type, they can have multiple Categories. Categories are used for browsing important Locations or amenities in your application. For example, a canteen might be in a Category of both "Food" and "Leisure", but still only be of the Type "Canteen".

1. Create a new Category.
2. "Edit Category" to edit the properties of your Category.
3. The name of the Category.
4. The Category's Key.

This page lists the Buildings in the selected Venue in your Solution.

1. "Edit Building." Lets you edit the properties of the Building:
   * Building Name (translatable)
   * Address
   * Whether it's Searchable
   * Its External ID
   * Details about its Floors:
     * Their Floor Name
     * Searchable status
   * Default Floor
   * Building Photo
     * Choose from the Media Library or set a URL
   * [Custom Properties](https://docs.mapsindoors.com/sdks-and-frameworks/web/other-guides/custom-properties)
2. The Name of the Building.
3. The Administrative ID of the Building.
4. The Address of the Building.

### Venues <a href="#venues" id="venues"></a>

The list of Venues in your Solution.

1. "Edit Venue"
   * The Venue Name, including translations.
   * Venue Photo. Set via the [Media Library](https://docs.mapsindoors.com/products/cms/media-library) or URL.
   * Whether it's Searchable
   * Its External ID
   * The Default Floor for the Venue. Set by a Floor index. The list contains all Floor Indexes found across all Buildings in the Venue.
   * [Custom Properties](https://docs.mapsindoors.com/sdks-and-frameworks/web/other-guides/custom-properties).
2. The Name of your Venues.
3. The Venue ID

### Solution Settings

This page contains various subpages with more advanced styling settings. Read more about Solution Setting [here](https://docs.mapsindoors.com/products/cms/solution-settings).

### App Settings​ <a href="#app-settings" id="app-settings"></a>

This page is where you configure your app and also setup the web app, if you want to use the map like that. [More information here](https://docs.mapsindoors.com/products/web-app).

#### **App Configuration​**

This section controls general app behavior, map provider settings, kiosk-related options, styling, and the initial map view shown to users when the app opens.

#### General

The General section contains core settings that affect how the app behaves for end users.

**Language** lets you choose the default language used in the app. If you select Browser's Language, the app will follow the language configured in the user's browser.

**Venue used on initial load** lets you choose which venue is shown first when the app opens. This option is only relevant when your solution contains more than one venue. If no specific venue is selected, the default venue is the first venue in alphabetical order.

**Map Markers Visibility** controls whether map markers are shown on the map. You can choose Default, Show, or Hide. The default behavior follows the map configuration already used by the app.

**Road Names Visibility** is available when using Mapbox map. It controls whether road names are shown on the map. You can choose Default, Show, or Hide.

**Disable Lazy Loading** is available when using Mapbox map. By default, the app loads map data only for the visible part of the map, which improves initial load time. If you disable lazy loading, all map data is loaded up front. This may make the first load slower, but navigation can feel smoother afterwards.

**Remove Mapbox Extruded Buildings** is available when using Mapbox. Enable this option to remove 3D extruded buildings from the map.

**Search External Locations** allows search results to include locations outside your MapsIndoors dataset, such as external addresses and places from third-party providers.

Under **Visibility** options, you can control whether certain UI elements are shown in the app:

* **View Selector** visibility shows or hides the View Selector. This selector is only relevant when more than one building is available.
* **Language Selector** visibility shows or hides the language selector in the app.
* **External Travel Mode Dropdown** visibility shows or hides the travel mode selector for external directions.
* **Full Screen button** visibility shows or hides the full screen button.

#### Map Provider

The Map Provider section is used to provide the credentials needed for the map service used by the Web App.

**Mapbox Access Token** is used when your app runs with Mapbox.

**Google Maps API** key is used when your app runs with Google Maps.

Enter the relevant token or API key depending on the map provider your solution uses.

#### Kiosk Controls

The Kiosk Controls section contains settings specific to kiosk mode.

**Enable accessibility** enables accessibility controls and layout adjustments for kiosk mode.

**Horizontal Categories Enabled** changes the kiosk layout so categories are displayed horizontally instead of vertically.

**Enable kiosk QR Code** controls whether the kiosk QR code is shown. This is enabled by default.

**Enable kiosk step move** allows users to move between steps in kiosk mode. By default, kiosk step movement is disabled.

#### Mapbox Map Style

The Mapbox Map Style section is only available when Mapbox is enabled.

Use Mapbox Map Style to provide the style URL used by the Web App. This determines the visual appearance of the Mapbox map.

#### Styling

The Styling section lets you customize the visual identity of the app.

**Loading screen logo** lets you choose the logo shown on the loading screen. Click Open Media Library to select an image. If a logo is already assigned, you can remove it again.

**Primary Color** sets the app's primary brand color. The value must be entered as a valid hex color code, for example `#000000` or `#FFF`. You can also reset the color back to the default value.

#### Initial Load View

The Initial load view section controls how the map appears when the app is first opened.

**Start Zoom Level** sets the zoom level used when the map loads initially. The allowed range is 0 to 22.

**Min Zoom Level** sets the minimum zoom level users can zoom out to. The allowed range is 1 (furthest zoomed out) to 20 (closest zoomed in).

**Bearing** is available when using Mapbox. It controls the rotation of the map. A value of `0` means north is up. The allowed range is 0 to 360.

**Pitch** is available when using Mapbox. It controls the viewing angle of the map. A value of `0` is a top-down view. The allowed range is 0 to 85.

Under Center, you can define the coordinates used to center the map on initial load:

* Latitude must be between -90 and 90.
* Longitude must be between -180 and 180.

Both latitude and longitude must be entered together. If only one value is provided, the configuration is considered invalid.

The "App Title" is used to set a name for your app in your application.

The "Alias" is a shorter name you can use for loading your application in your app. Think of it as a "named API key", so instead of a random combinations of letters and numbers, it's an easy to remember name instead.

Do not set an Alias if you want to make it more difficult to find and load your MapsIndoors data. In that case, you should only load the data with an API key.

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-d17b92e19c0bbe24a883667e1b0a14d9586b7c3a%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

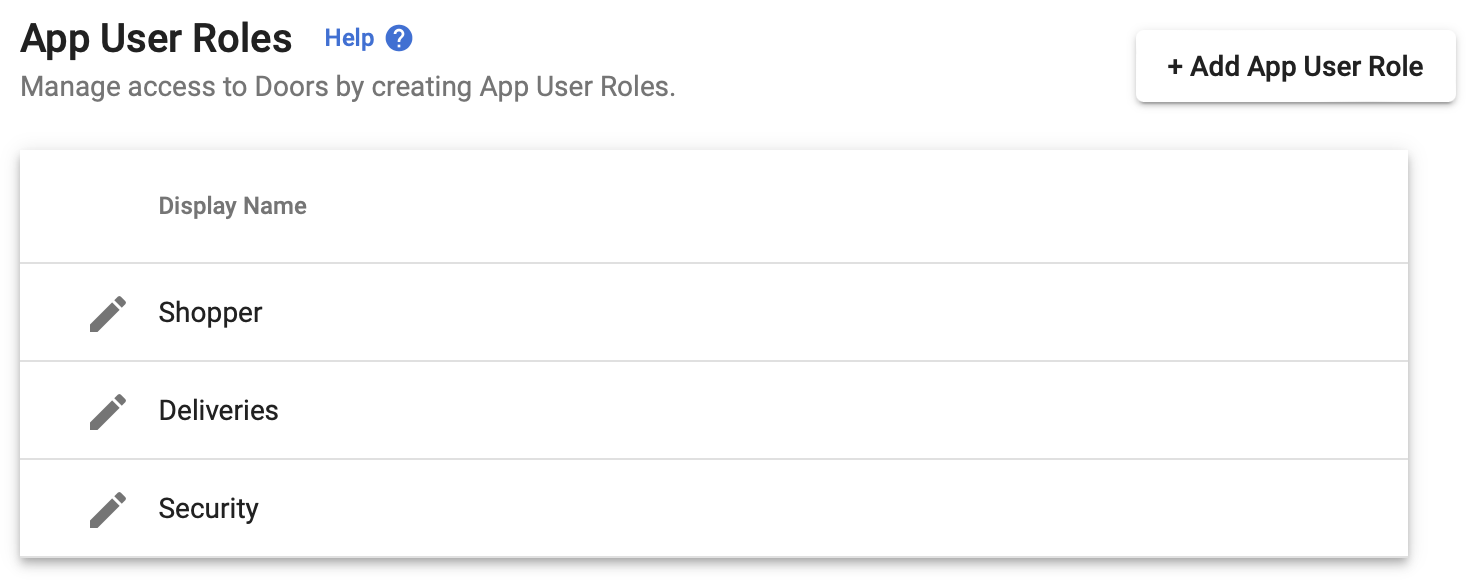

"App User Roles" are used for controlling access to Location data, and for Wayfinding for specific users of your app.

1. Click the "Edit Role" icon to edit its name, including translations.
2. The Display Name.
3. Click "Add App User Role" to add to the list.

In the "App Categories" section, you can edit more details about your Categories.

1. Move your app Categories up and down in order. If your app uses the App Config, you can change the order in which the Categories are displayed in your app.
2. The name of the Category.
3. Toggle whether or not the Category in question is visible in the app.
4. The Icon selected for the Category.
5. Select an Icon to be used for the Category. Opens the [Media Library](https://docs.mapsindoors.com/products/cms/media-library).

### **API Keys​**

Here you manage the active API keys generated for your Solution. You need an API key to load your MapsIndoors data in your apps.

You can create as many API keys as you want, and it is good practice to use one for each place you need to load data from MapsIndoors (each mobile platform, web app etc.).

You can easily delete an API key if it is unused, or has been compromised.

1. The name that you want to use to identify the new API key.
2. Generate an API key.
3. The name of an active API key.
4. Save any changes you make.
5. Toggle between active and inactive API keys.
6. Your API key is located here in text form.
7. Delete the API key.
