Data Description

Last updated 9 months ago

Was this helpful?

Dataset

The main starting point for your data is the dataset object. This object contains information about the entire data set such as languages and where to find more data.

The demo dataset looks like this:

{
  "id": "550c26a864617400a40f0000",
  "name": "RTX",
  "availableLanguages": [
    "en",
    "da"
  ],
  "baseLanguage": "en",
  "rootObjects": [
    "550c286964617400a4100000"
  ]
}

It tells which languages are defined for this project, which language is the default one (English in this case) and it has a rootObjects reference list which refers to the geospatial data that makes up the bulk of a MapsIndoors Solution the root objects are Geodata objects.

Geodata

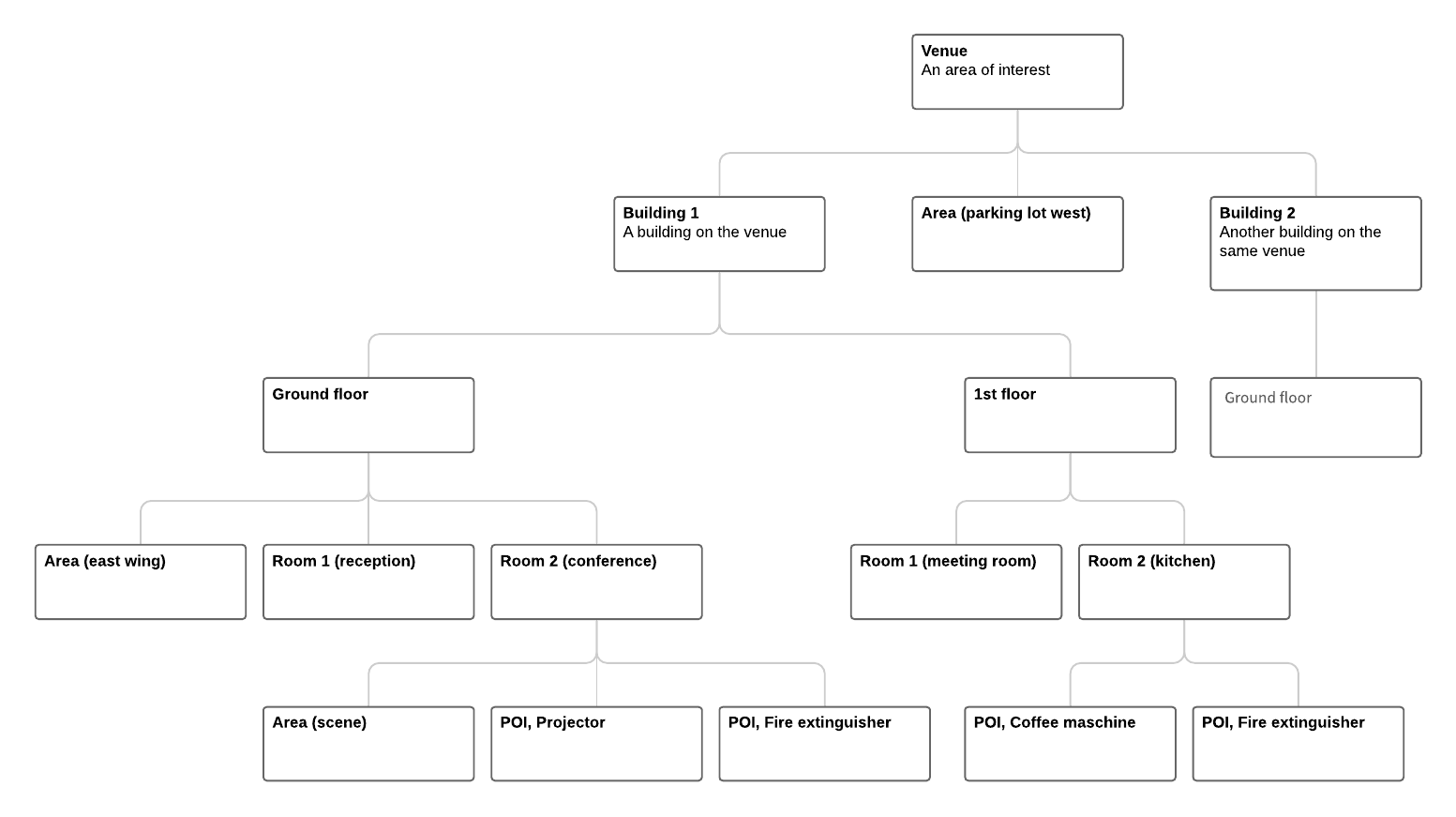

All geospatial data, Geodata, is arranged in a simple tree. Each element has a parent ID (except the root) so as an example, a point of interest (POI) can have a Room parent. The Room will typically be on a Floor in a Building on a Venue. Venues are always the root object (identified with parent ID is null), and is defined by "An overall geographical area which typically comprises the area of one or more buildings and their relevant surrounding areas such as lawns and parking lots".

You can create, update, delete all Geodata types: Venue, Building, Floor, Room, Area and POI.

All Geodata BaseTypes have some common keys that is available for all, and then there is some specific ones for each type, listed in BaseTypeProperties.

A Geodata object contains the following:

  • Id [string(24)]

    • MapsIndoors generated ID. Should be null if you are creating an object.

  • DatasetId [string]

    • The dataset ID of your MapsIndoors Solution.

  • ParentId [string(24)]

    • The MapsIndoors ID that this Geodata object is a child of.

  • BaseType [string]

    • The BaseType this Geodata covers.

      See more in the intro of the Geodata above.

  • BaseTypeProperties [Dictionary]

    • Properties that directly changes the behaviour of the BaseType itself.

      See more details below.

  • DisplayTypeId [string(24)]

    • ID of a Display Type to follow.

      Only relevant for POI/Room/Area.

  • DisplaySetting [DisplayRule]

    • An overriding Display Rule to use, instead of the one from the Display Type.

      See "DisplayRules" under Display Type.

      Only relevant for POI/Room/Area.

  • Geometry [GeoJSON.Geometry]

  • Anchor [GeoJSON.Point]

    • Generally the anchor is the center of the Geometry itself.

  • Aliases [Array<string>]

    • A list of searchable aliases that should be associated with the Geodata.

  • Categories [Array<string>]

    • List of Only relevant for POI/Room/Area.

  • Status [bitfield]

    • Bit 1: Active. Bit 2: Searchable.

      See more details in the following example.

  • Properties [Dictionary<string, string>]

    • Custom properties contains meta information related to the Geodata in a key-value structure.

      See more details in the following examples.

  • TilesUrl [string]

    • The URL where the tiles are located. These should be identical across Venues in the same Dataset.

      Only relevant for Venue.

  • TileStyles [TileStyle]

    • How the tiles should Only relevant for Venue.

  • Administrativeid [string] - * required

    • Unique ID for this Venue.

  • Defaultfloor [nullable int]

    • The AdministrativeId from a Floor that should be the default selected for the Venue.

  • Imageurl [string]

    • URL for the image that should be displayed in relation to the Venue.

  • Activestylefolder [string]

    • The default Style that should be used in the Tiles.

  • Graphid [string(24)]

    • The ID for the MapsIndoors Graph used to navigate in the building.

  • Administrativeid [string] - * required

    • Unique ID for this Building.

  • Defaultfloor [nullable int]

    • The AdministrativeId from a floor that should be the default selected for this Building).

  • Imageurl [string]

    • URL for the image that should be displayed in relation to the Building.

  • Name [string] - * required

    • Floor identifier that will be used in the floor selector e.g. ‘0', ‘42', ‘B1', etc.

      Keep it as short as possible. Recommendation is 1-3 characters.

  • Administrativeid [int] - * required

    • The index of the Floor inside of its parent Building.

  • Administrativeid [string] - * required

    • Unique ID for this Location.

  • Class [string]

    • The MapsIndoors color class that the Location should follow.

  • Imageurl [string]

    • URL for the image that should be displayed in relation to the Location.

  • Activefrom [Nullable Datetime]

    • A datetime of when it should be available from. Times are defined in UTC.

  • Activeto [Nullable Datetime]

    • A datetime of when it should be available to. Times are defined in UTC.

Venue, Building, Floor, Room and Area have a polygon that describes where its position is on the map. POIs are noted with a single point on the map and is typically located inside a Room or on a Floor - important things like the coffee machine.

Note: When you get data, you only specify the apiKey hence you get the entire tree! The other Geodata endpoints works on individual Geodata objects.

Each Geodata element has a number of properties. Let's look at an example - a coat hanger.

{
  "id": "13889288f79d4abfb7021ad7",
  "parentId": "f43b931f09314f3f9dd796f9",
  "datasetId": "550c26a864617400a40f0000",
  "baseType": "poi",
  "baseTypeProperties": {
    "class": null,
    "imageurl": null,
    "activefrom": null,
    "activeto": null,
    "administrativeid": "RTX"
  },
  "displayTypeId": "d7558711f7c64534972cc65f",
  "geometry": {
    "coordinates": [
      9.956830884329975,
      57.085763732415764
    ],
    "type": "Point"
  },
  "aliases": [],
  "categories": [],
  "status": 3,
  "properties": {
    "name@en": "Coat stand (RT)",
    "name@da": "Jakkeholder (RT)",
    "description@en": "Just a regular coat stand",
    "description@da": "En almindelig jakkeholder"
  }
}
  • id

    All elements have a unique 24 character string.

    If you are creating, this should be null, since it will be generated upon saving the object.

  • ParentId

    For elements (other than the root) there is a parentId which links to the element it's connected to.

    This will be a 24 character string, just as Id is.

  • BaseType

    Tells what kind of data it is - it can be poi, room, area, floor, building, or venue.

  • BaseTypeProperties

    Defines a dictionary setup with properties that is bound by its BaseType.

    It is not possible to add any other keys to BaseTypeProperties, except the predefined ones.

  • DisplayTypeId

    Is a reference to the display type as described below. All rooms and poi geodata requires this to be set. As this is an ID, the reference is a 24 character string format as described above.

  • Geometry

  • Aliases

    Is an optional list of aliases for this data written as a list of non-translated text. This can be used e.g. if a building or room has a common nickname users could use when searching for it.

  • Categories

    Is a reference to the category data as described below. Geodata is not required to reference any categories - like in this example. As this is an ID, the reference is a 24 character string as described above.

  • Status

    • bit1: active. If an element is not active, it will not be given to the apps.

    • bit2: searchable. If an element is not searchable it might be shown on the map, but not show up in searches.

      As there are two bits, the final values can be:

      0: Not active, Not searchable 1: active, Not searchable 2: Not active, searchable (not a very useful combo) 3: active, searchable

  • Properties

    Contains other data about the Geodata object such as names, description or even custom data like gate numbers, vendor id, exhibition id or other data needed.

    Name is mandatory - at least for the base language set for the dataset.

    The key format is: <keyname>@<language>

    E.g. name in english will be ‘name@en' - in the example with a value of "Coat stand (RT)"

    As this is a dictionary setup, the keyname needs to be unique and only contain the ascii chars [a-z] and [0-9]. Use of spaces and unicode chars here is discouraged as it makes it harder to use from the application code side. The char @ is not supported in the keyname as it's used as a seperator. As an example, if you want to store opening hours here you could use the key openinghours@en as a keyname.

Note: BaseType ‘Floor' doesn't support properties.

Now let's have a look at another Geodata with the BaseType Area.

An Area is a BaseType that is a little different compared to e.g. POI and Room:

It can be a part of a Room, Floor or Venue, but it can't be a parent to any other Geodata objects. An Area can (unlike a Room) expand across multiple Rooms, or even Buildings.

It will look a lot like the POI example, with a few differences:

{
"id": "7b2fe3da61b34cd9991ba510",
"parentId": "f43b931f09314f3f9dd796f9",
"datasetId": "550c26a864617400a40f0000",
"baseType": "area",
"displayTypeId": "41b1a5274fe8454ba2b6e6ff",
"geometry": {
  "coordinates": [
    [
      [
        9.95615091100001,
        57.085511788
      ],
      [
        9.95631731999998,
        57.085424259
      ],
      [
        9.95635468799998,
        57.085445236
      ],
      [
        9.95618828099998,
        57.085532766
      ],
      [
        9.95615091100001,
        57.085511788
      ]
    ]
  ],
  "bbox": [
    9.95615091100001,
    57.085424259,
    9.95635468799998,
    57.085532766
  ],
  "type": "Polygon"
},
"anchor": {
  "coordinates": [
    9.9562527993,
    57.0854785126
  ],
  "type": "Point"
},
"aliases": [],
"categories": [
],
"status": 3,
"baseTypeProperties": {
  "class": "area",
  "imageurl": "",
  "activefrom": null,
  "activeto": null,
  "administrativeid": "DCC843A7-C762-6D95-94AE-FDBFCEE189EC"
},
"properties": {
  "name@en": "Changing area",
  "description@en": "",
  "name@da": "Omklædnings område",
  "description@da": ""
}
}
  • ParentId

    The area's ParentId could be either a Venue, a Floor, or a Room. In this case, it is in the same parent as the Coat Hanger POI.

  • Geometry

  • Anchor

    The anchor here should normally define the center of the polygon. This can be used for a variety of features, depending on the use case.

Common setup for Geodata of different kinds (meeting room, hallway, ...)

{
  "id": "bb5410b32a5240d182ba50bb",
  "name": "BreakOutArea",
  "aliases": [ "changing", "changing zone" ],
  "displayRules": [
    {
      "name": "default",
      "zoomFrom": 19,
      "zoomTo": 21,
      "iconUrl": "https://app.mapsindoors.com/mapsindoors/gfx/bella/80/BreakOutArea.png",
      "labelZoomFrom": 19,
      "labelZoomTo": 20,
      "visible": true,
      "iconVisible": true,
      "labelVisible": true,
      "labelMaxWidth": 200
    }
  ],
  "propertyTemplates": [
    {
      "text": "phone",
      "type": "text"
    }
  ],
  "properties": {
      "name@en": "Changing area",
      "description@en": "",
      "name@da": "Omklædnings område",
      "description@da": ""
   }
}
  • Id

    All elements have a unique 24 character string. This is used when referencing - e.g. when referencing from individual geodata

  • Name

    The name of a display type is a secondary ID. This can be used as an alternative to the main ID. Note that this is NOT a 24 character string.

  • Aliases

    Aliases are a list of language neutral terms that can be used when searching for Geodata that references this DisplayType

  • DisplayRules

    Each type has a set of display rules that tells if and how geodata should be presented. E.g. which icon to use for meeting rooms, when it should be shown based on zoom level or if it should have a label. There are two parts to a rule: An **evaluation** part (zoom from/to) and a **style** part - the rest of the displayRule object.

    Zoom from and to is inclusive. In this example an icon will be shown from zoom level 19 to 21. A quick word on zoom levels: these are described in [web mercator](https://en.wikipedia.org/wiki/Web_Mercator_projection) which is the system we use to show maps. In short zoom level 1 shows a map of the earth in its entirety and a higher zoom level lets you get closer. The highest supported zoom level is generally 21, but some Solutions support up to zoom level 22.

    You will notice that there are 3 ‘visibility' keys (visible, iconVisible, labelVisible). The first one, ‘visible', is the main switch that will show and hide the whole element. The two others, ‘iconVisible' and ‘labelVisible', is changing the individual elements it is attached to. This way, you can toggle the ‘visible' without having to remember the visible state for both the icon and label.

    In addition to having a label visible or not, a `labelMaxWidth` can be set in order to enforce a maximum width in pixels.

    If the actual label width would exceed this, the label text is automatically broken into multiple lines.

  • PropertyTemplates

    The property templates is an option list of which extra properties new Geodata of the given types should have. In this case all POIs of type "breakout areas" will have a field in the CMS to enter a phone number for the new POI. This will then be stored as a property on that Geodata.

  • Properties

    Contains language specific data about the DisplayType object such as names, description etc. Each property has a key that follows this format:

    <keyname>@<language>

    The name property must be specified for every language defined in the dataset.

Note: The display type data is split in the CMS; currently it can be found in the fans "Location Types" and "Type Visibility".

Categories are used to group Geodata together. As an example, rooms, areas or POIs in some department - e.g. "development" or "marketing" can be set in each of their group. Using categories is not mandatory and thus each Geodata can link to "none to many" categories.

This grouping is then used as a relevancy criteria when searching.

As a simple example: All rooms and areas across any building/venue related to entrances can be grouped using this example:

{
  "id": "5823246d07215b23a02e3cdd",
  "key": "entrance",
  "name": {
    "en": "Entrance",
    "da": "Indgang"
  },
  "properties": {
    "description@en": "The entrance closest to the parking lot",
    "description@da": "Indgangen tættest på parkeringspladsen"
  }
}
  • Id

    All elements has a unique 24 character string. This is used when referencing - e.g. when referencing from individual Geodata

  • Key

    The key of a category is a secondary ID. This can be used as an alternative to the main ID. Note that this is NOT a 24 character string.

  • Name

    A translatable name for the category.

  • Properties

    Contains language specific data about the Category object such as numbers, description etc. Each property has a key that follows this format:

    <keyname>@<language>

    The name property must be specified for every language defined in the dataset.

Object Definition

The geometry related to the Geodata according to the structure in the coordinate system.

BaseTypeProperties for Venue

BaseTypeProperties for Building

BaseTypeProperties for Floor

BaseTypeProperties for a Location (POI/Room/Area)

To read, change or delete Geodata use the Geodata endpoints described here:

Detailed Data Description

Geodata

Example: POI

Contains the actual geodata - where it is on the map. It's based on - in the example above the geometry is a point defining the POIs position on the map.

Is a .

Example: Area

Like before, the structure is based on and is in this case, a polygon, that encapsulate were the Area is placed. There is also a bounding box field called bbox as a part of the geometry. This is should define the box around the defined geometry. This is both for optimization purposes, and e.g. to easy navigate a camera to show the geometry when needed to.

DisplayTypes

Categories

​
GeoJSON
WGS84
​
​
​
​
https://integration.mapsindoors.com/doc/index.html#/Geodata
​
​
​
GeoJSON
bitfield
​
GeoJSON
​
​
​
​
