# Barrier Route Element

Adding a new **Barrier Route Element** to your Network enables you to change the underlaying graph data. Common applications encompass the adjustment of wait times, the imposition of access restrictions, and the establishment of one-way designations in specific directions for a particular location.

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-f8bf88ce7e317de4a06afbf9fa99a42407b1f6d4%2Fadd-barrier.png?alt=media" alt=""><figcaption></figcaption></figure>

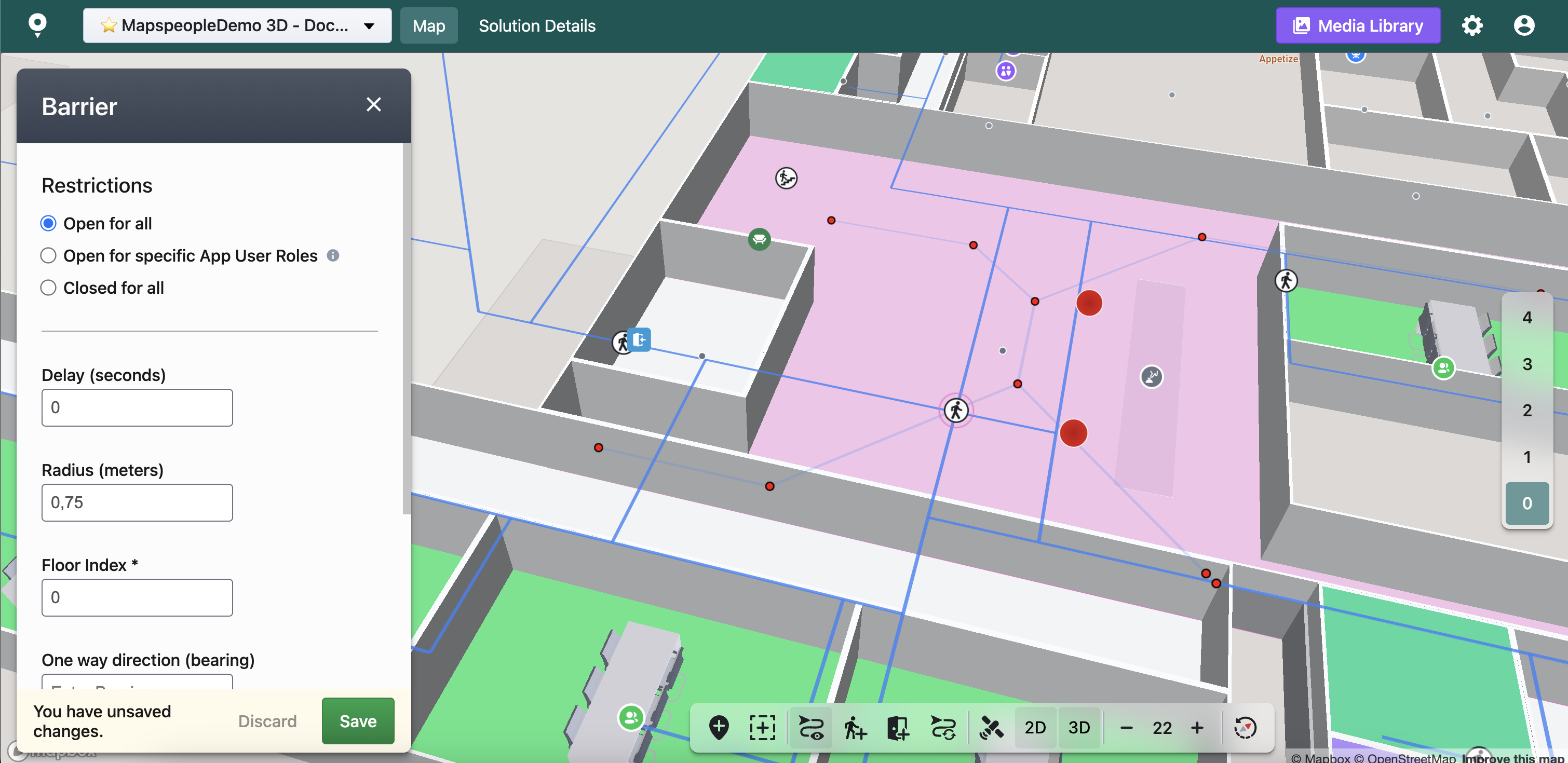

When adding a new **Barrier Route Element** you have the option to modify different settings.

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-8fc882fd9a6e045a8635154606e3c10563ba88fa%2Fadd-barrier-editor.png?alt=media" alt=""><figcaption></figcaption></figure>

* **Restrictions** - you can set which types of App User Roles are allowed or prohibited from accessing certain parts of the Route Network.
  * **Open for all** - all App User Roles are allowed.
  * **Open for specific App User Roles** - certain App User Roles are allowed. You must select the specific App User Roles you wish to give access to. If no App User Roles are selected, the **Closed for all** option will be selected automatically.
  * **Closed for all** - no App User Roles are allowed
* **Delay** - to be able to calculate the different routes accurately, you may add some delay to a **Barrier Route Element**. This property can help us serve your users the fastest/most optimal route. An example can be a very high-traffic area. It is used in estimated arrival time calculations.
* **Radius** - you can set the Radius (in meters) for the **Barrier Route Element**, to ensure it touches the Route Network.
* **Floor Index** - the floor onto which the **Barrier Route Element** should be added. By default, we fill it with the currently active [floor's index](#user-content-fn-1)[^1].

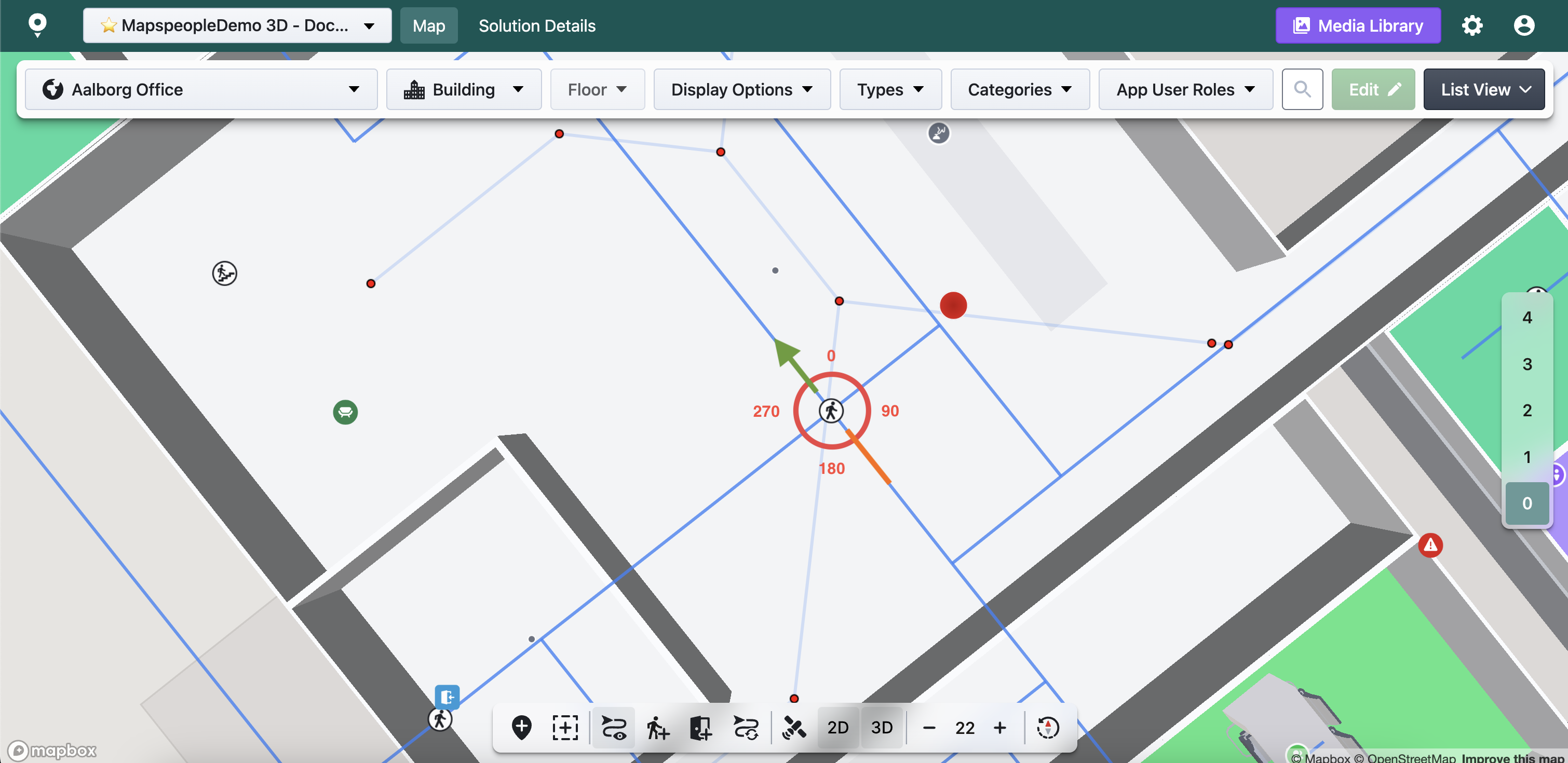

* **One way direction (bearing)** - the value can be set from 0-360 degrees. It defines the orientation of the one way direction. It is always north faced, so for example if you set a bearing to 45 the one way direction goes from the centre and North East.

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-5838a0d1a8f2f6d31a073ff1f562de59f1e65575%2Fbearing.png?alt=media" alt=""><figcaption></figcaption></figure>

At the bottom of the editor you will also find additional information about the **Barrier Route Element** including the element's id, coordinates, who and when modified it last.

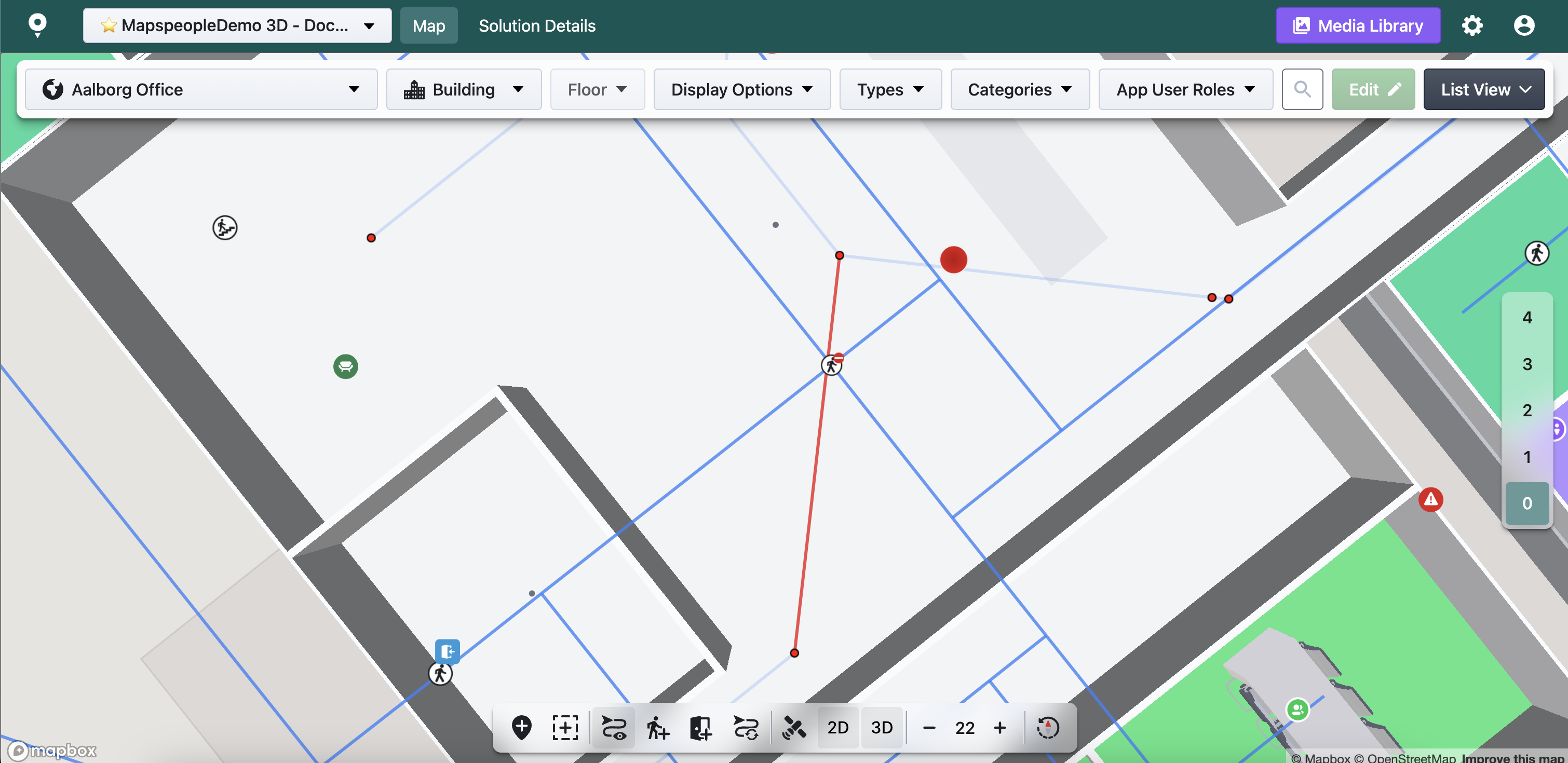

After Saving / Editing / Deleting a **Barrier Route Element** remember to reload the Route Network to see your changes applied (in case of Automatic Route Network).

<figure><img src="https://2554025873-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYZLXDaaclvaSK6Q7eigW%2Fuploads%2Fgit-blob-2584e04caf48a000975aef9fc7ed83ccf7069d8d%2Fnew-barrier.png?alt=media" alt=""><figcaption></figcaption></figure>

[^1]: Floor indices might differ from floor names that you see on the right side of the screen. Please make sure you are using the correct floor index before saving.
