Set Up Your Environment

Last updated 1 month ago

Was this helpful?

Now that you have taken care of all the preliminary issues, we can start building the app. Throughout this guide, you will continously modify this project to extend its functionality to cover a number of basic features.

Create an Xcode Project

We recommend using for following along. For this guide we will be using Xcode 15.4. Note that an iOS mobile device is not required, as Xcode allows the use of a simulator.

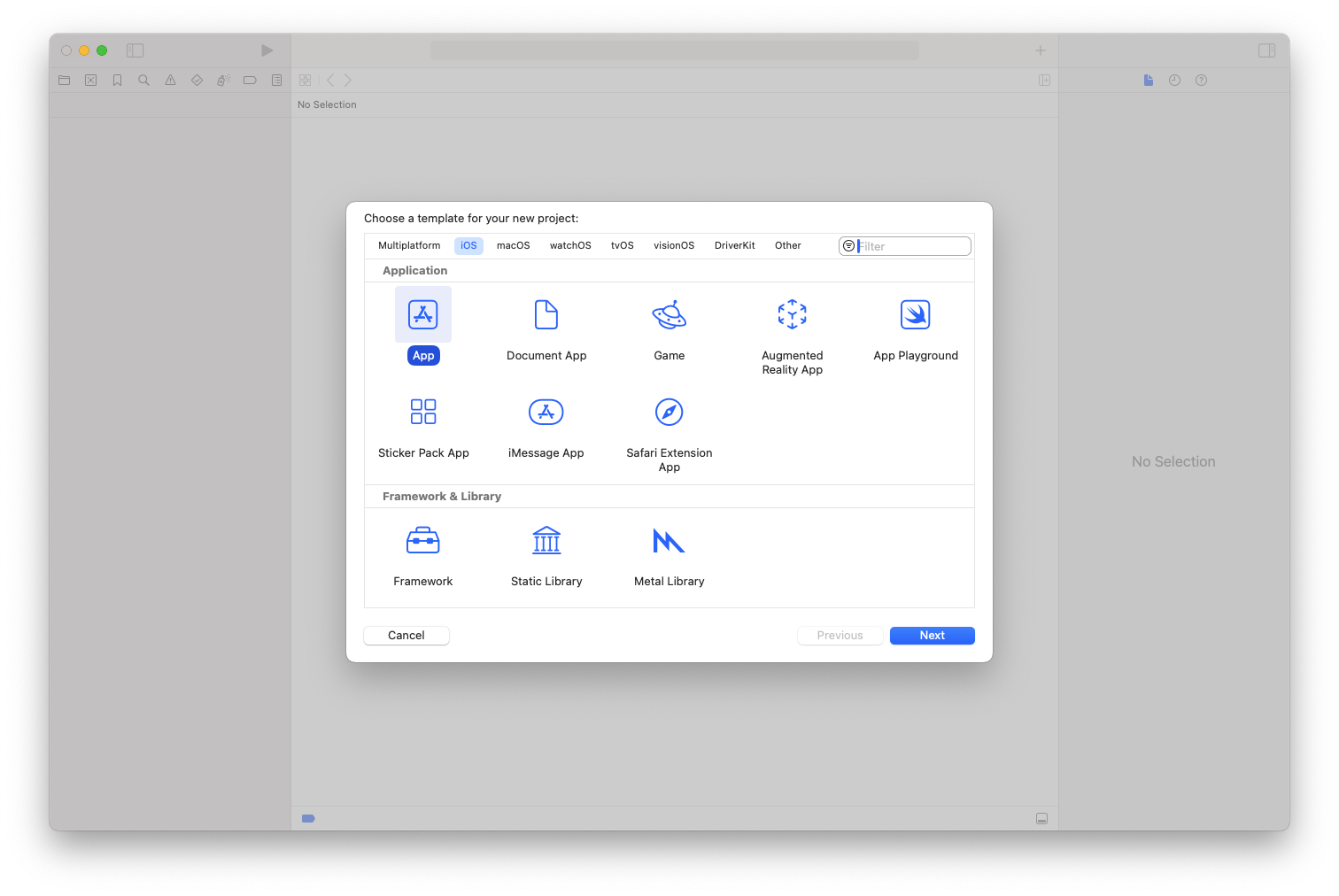

We start off by creating an Xcode project using the App template:

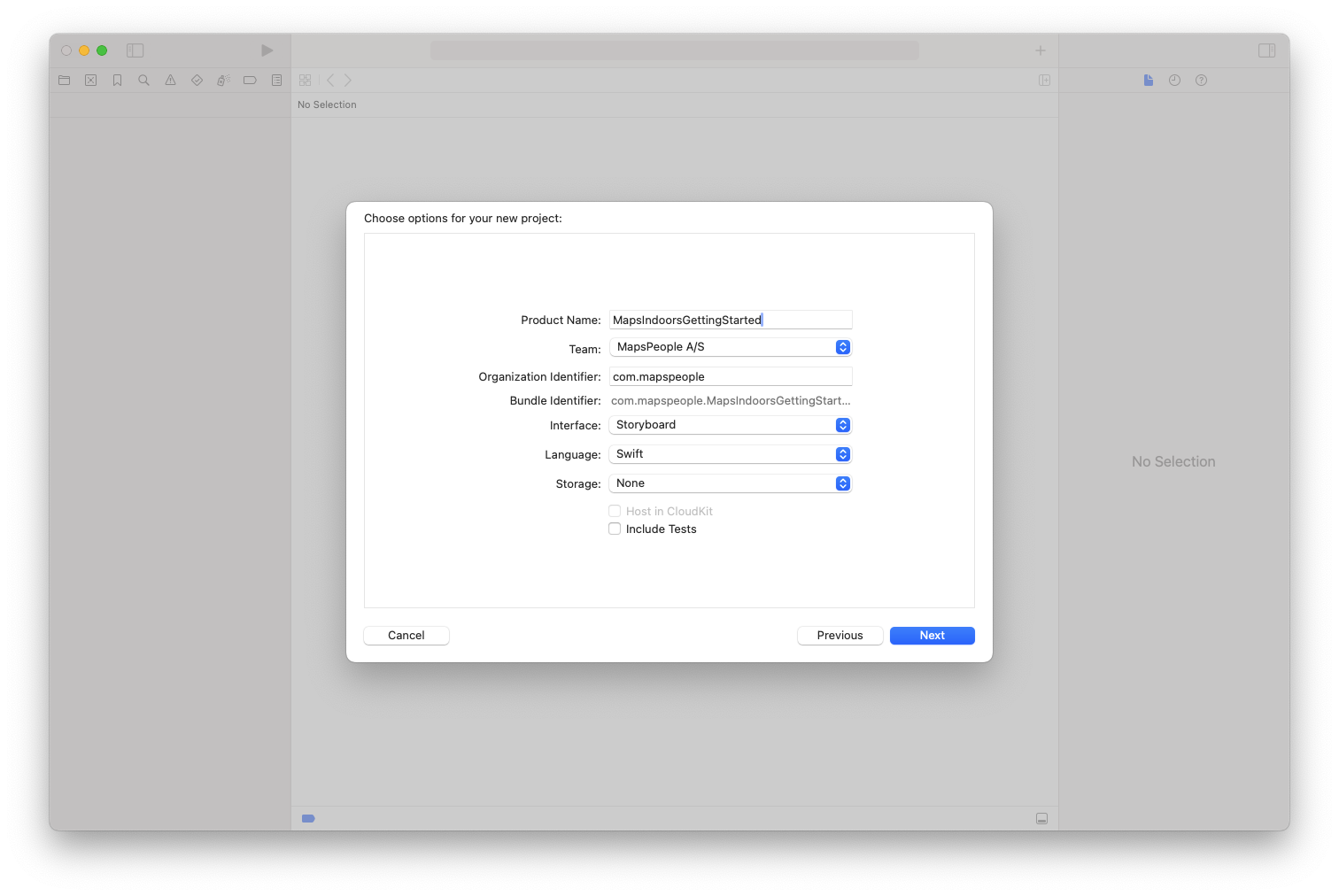

For the project settings, you can call it anything you like, however ensure the following settings are set to follow along easier:

  • Interface: Storyboard

  • Language: Swift

You should now have a project folder with the following files:

MapsIndoors can be installed using Swift Package Manger, CocoaPods or you can install the XCFrameworks manually if using Google Maps.

  1. Open your Xcode project or workspace, then go to File > Add Packages Dependencies....

  2. or

  3. Select the Dependency Rule you want to apply to the MapsIndoors SDK

    • A common choice for Dependency Rule is "Up to Next Major Version", specifying 4.9.0 as the minimum version. To instead install a specific version set the Dependency Rule field to "Exact Version" and insert the desired version. The latest version of the MapsIndoors SDK is 4.9.5.

  4. Hit enter or Click Add Package.

  5. In the new window select the MapsIndoorsMapbox or MapsIndoorsGoogleMaps library and click Add Package. Once SPM finishes installing the SDK you will see 3 new dependencies under Package Dependencies: MapsIndoors, MapsIndoorsCore, and MapsIndoorsMapbox or MapsIndoorsGoogleMaps (plus their respective dependencies).

  6. Click on your project's target, scroll down to Frameworks, Libraries, and Embedded Content and click the plus button.

  7. From the list select MapsIndoorsMapbox or MapsIndoorsGoogleMaps and click add.

Now you can use start using MapsIndoors in your project by using import MapsIndoors in your source code.

  1. Create a new Podfile in your project directory (same folder as your .xcodeproj) by running pod init <XCODEPROJECTNAME> in Terminal.

  2. Add your dependecies to the Podfile as follows (replace YOUR_APPLICATION_TARGET_NAME_HERE with your actual target name),

    source 'https://github.com/CocoaPods/Specs.git'

    platform :ios, '15.0' # Replace 15.0 with you iOS Minimum Deployment Target

    target 'YOUR_APPLICATION_TARGET_NAME_HERE' do
      # Remove the comment mark to use your map specific MapsIndoors pod
      # pod 'MapsIndoorsGoogleMaps', '~> 4.9'
      # or
      # pod 'MapsIndoorsMapbox11', '~> 4.9'
    end
  1. Save the Podfile and close Xcode.

  2. Open a terminal in the directory of the project. cd <path-to-project>

  3. Run pod install in the terminal.

  4. From this time onwards, use the .xcworkspace file to open the project.

  • Copy the following frameworks to the root folder of your app project (in Finder, not in Xcode)

    • GoogleMaps-8.4.0/Base/Frameworks/GoogleMapsBase.framework

    • GoogleMaps-8.4.0/Maps/Frameworks/GoogleMaps.framework

    • GoogleMaps-8.4.0/Maps/Frameworks/GoogleMapsCore.framework

  • In Xcode, drag the GoogleMaps.bundle from the GoogleMaps-8.4.0/Maps/Resources/GoogleMapsResources folder into the top level directory of your Xcode project. When prompted, ensure "Copy items if needed" is selected.

    • MapsIndoors

    • MapsIndoorsCore

    • MapsIndoorsGoogleMaps

  • Drag and drop the three MapsIndoors XCFrameworks into your Xcode project. In the dialog that pops up, choose “Copy items if needed” and make sure the XCFramework is added to your app target.

  • In Xcode, go to "General" and expand "Frameworks, Libraries, and Embedded Content" and make sure the three MapsIndoors XCFrameworks are marked as "Embed & Sign".

  • In Xcode, go to "Build Settings" for your target and make sure the following entries are present in the FRAMEWORK_SEARCH_PATHS

$(inherited)
$(PROJECT_DIR)/**

This "Getting Started" guide is created using a specific version of the SDK. When moving beyond the "Getting Started" guide, please be sure to use the latest version of the SDK.

Open back up the project and navigate to the file AppDelegate.swift.

  1. Add the following import statements to the top of the file:

import MapboxMaps
import MapsIndoorsCore
  1. Insert the following into the application(_:didFinishLaunchingWithOptions:) method. If you are using Mapbox then provide your API Key when you add your map to the view inside viewDidLoad() in your ViewController.swift:

ResourceOptions(accessToken: "YOUR_MAPBOX_API_KEY")
let initOptions = MapInitOptions(resourceOptions: myResourceOptions, styleURI: StyleURI.light)
self.mapView = MapView(frame: view.bounds, mapInitOptions: initOptions)
// Set the MPMapConfig
MPMapConfig(mapBoxView: mapView!, accessToken: "---")
Task {
    await MPMapsIndoors.shared.load(apiKey:"YOUR_MAPSINDOORS_API_KEY")
}

Finally, remember to replace YOUR_MAPBOX_API_KEY with your Mapbox Access Token and YOUR_MAPSINDOORS_API_KEY with your MapsIndoors API key (or use the demo key mapspeople3d).

  1. Add the following import statements to the top of the file:

import GoogleMaps
import MapsIndoorsCore
  1. Insert the following into the application(_:didFinishLaunchingWithOptions:) method. If you are using Mapbox then provide your API Key when you add your map to the view inside viewDidLoad() in your ViewController.swift:

GMSServices.provideAPIKey("YOUR_GOOGLE_API_KEY")

Finally, remember to replace YOUR_GOOGLE_API_KEY with your Google API key.

Installing the MapsIndoors SDK

In the search bar in the top right corner, enter (to use Mapbox Maps)

(to use Google Maps)

If you're using Mapbox, make sure to configure your secret token in order to download the required dependencies from Mapbox when installing the Swift Package:

If you're using Mapbox, make sure to configure your secret token in order to download the required dependencies from Mapbox when running pod install:

If you are upgrading from a version previous to 4.6.0 you must remove the post_install script parts previously required by MapsIndoors .

Download the

Download and unzip the following MapsIndoors SDK v4 XCFrameworks from the :

Adding API Credentials

​
https://github.com/MapsPeople/mapsindoors-mapbox-ios.git
https://github.com/MapsPeople/mapsindoors-googlemaps-ios.git
https://docs.mapbox.com/ios/maps/guides/install/#configure-credentials
https://docs.mapbox.com/ios/maps/guides/install/#configure-credentials
for Google Maps
Google Maps iOS SDK 8.4.0
latest release
​
​
Xcode
